React Native Sample Application ​

The Sample Application (also abbreviated as "SampleApp") is a reference project for implementing an application based on the Binah.ai SDK.

Building the Sample Application ​

The following instructions are relevant for React Native (Android & iOS) sample applications.

1. Add the SDK to the application ​

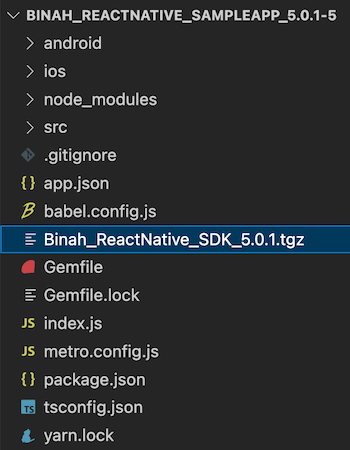

Place the SDK Binah_ReactNative_SDK_5.0.1.tgz package inside the project, at the same level of the src, ios & android folders. As shown in the screenshot below:

2. Install required packages ​

Open the terminal application and navigate to the project's root directory. Run yarn to update the React Native dependencies.

3. Start the Metro bundler ​

In the same terminal window, perform yarn start and keep this termninal window open.

4. Set the License Key ​

• Open the MeasurementScreen.tsx file.
• Replace the <ENTER_YOUR_LICENSE_KEY> string, with the license key you received from Binah.ai.

const MEASUREMENT_DURATION = 60;
const LICENSE_KEY = "<ENTER_YOUR_LICENSE_KEY>";

5. Configure the Measurement Duration (Optional) ​

• Open the MeasurementScreen.tsx file
• Replace the value of MEASUREMENT_DURATION with a value between 20-180. The value represents the measurement duration in seconds. The sample application allows the user to stop the measurement before the defined measurement duration.

const MEASUREMENT_DURATION = 60;
const LICENSE_KEY = "<ENTER_YOUR_LICENSE_KEY>";;

6. Run the application ​

Now the application is ready to run.

Android ​

• Connect an Android device to your computer.
• Use one of the following methods:
  • Using Android Studio IDE:
    • Open a new terminal window and run adb reverse tcp:8081 tcp:8081.
    • Open the android folder and then click the green play button.
  • Using the terminal application: go to the project folder and run yarn android.

iOS ​

• Connect an iOS device to your computer.
• Use one of the following methods:
  • Open the ios/SampleApp.xcworkspace in XCode and then click the play button.
  • Using the terminal application, go to the project folder and run yarn ios.

Measuring Vital Signs ​

• Position your face in the center of the camera preview.
• Click the Start button and verify that you see the face detection graphics (bounding rectangle).
• Pulse Rate vital sign values (this is an example of an "instantaneous" value) should be received after approximately 11 seconds.
• After the measurement ends (either by tapping on the Stop button or at the end of the defined measurement duration), an alert with the Pulse Rate and Blood Pressure result will be shown (this is an example of a "final" result).
• The final results may be invalid if there was insufficient measuring time.
• Also see the following relevant pages:
      - Best practices on how to take a measurement
      - SDK Accuracy Targets and Report Times
      - SDK Alerts
